IES-25005

5 PORT INDUSTRIAL GRADE NETWORK SWITCH

RUGGED APPLICATION WITH 4kV SURGE PROTECTION

IES-25005/04 designed for deployment in Harsh environments, the condo series is

equipped with 5 Fast Ethernet copper ports.

• Compact Size for easy deployment in harsh environments.

• Fanless design and high reliability

• Power input reverse polarity protection

Operating Temp. -40 to 70°C (-40 to 158°F)

Storage Temp. -40 to 85°C (-40 to 185°F)

Relative Humidity- 5% to 95% (non-condensing)

Port Configuration: Comes with Fast Ethernet copper ports-10/100 Mbps

Rugged Design: A durable, DIN rail-mountable metal housing ensures the switch is built to last in industrial environments, with an easy installation process.

5 x Ethernet 10/100BASE-TX ports for industrial network connectivity.

Installation: Designed for DIN-rail mounting, simplifying installation in industrial control panels.

Processing Type: Store-and-Forward Auto Negotiation; Half-duplex back-pressure Auto MDI/MDIX

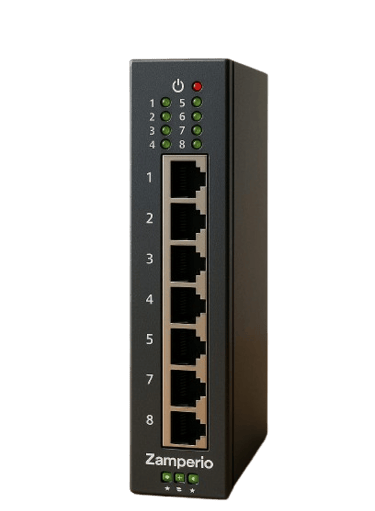

IES-25008

8 PORT INDUSTRIAL GRADE NETWORK SWITCH

IES-25008 designed for deployment in Harsh environments

• Compact Size for easy deployment in harsh environments.

• Fanless design and high reliability

• Power input reverse polarity protection

Operating Temp. -40 to 70°C (-40 to 158°F)

Storage Temp. -40 to 85°C (-40 to 185°F)

Relative Humidity- 5% to 95% (non-condensing)

Port Configuration: Comes with Fast Ethernet copper ports-10/100 Mbps

Rugged Design: A durable, DIN rail-mountable metal housing ensures the switch is built to last in industrial environments, with an easy installation process.

8 x Ethernet 10/100BASE-TX ports for industrial network connectivity.

Installation: Designed for DIN-rail mounting, simplifying installation in industrial control panels.

Processing Type: Store-and-Forward Auto Negotiation; Half-duplex back-pressure Auto MDI/MDIX

IES-1600H :

16-Port 10/100BASE-TX

IES-1402H :

14-Port 10/100BASE-TX + 2- Port 100BASE SFP

16 PORT INDUSTRIAL GRADE NETWORK SWITCH

Designed for deployment in Harsh environments

• Compact Size for easy deployment in harsh environments.

• Fanless design and high reliability

• Power input reverse polarity protection

Operating Temp. -40 to 70°C (-40 to 158°F)

Storage Temp. -40 to 85°C (-40 to 185°F)

Relative Humidity- 5% to 95% (non-condensing)

Port Configuration: Comes with Fast Ethernet copper ports-10/100 Mbps

Rugged Design: A durable, DIN rail-mountable metal housing ensures the switch is built to last in industrial environments, with an easy installation process.

Installation: Designed for DIN-rail mounting, simplifying installation in industrial control panels.

Processing Type: Store-and-Forward Auto Negotiation; Half-duplex back-pressure Auto MDI/MDIX

IES-24004

24 PORT 10/100 BASE AND 4 PORT GIGABIT; HARDENED INDUSTRIAL GRADE NETWORK SWITCH

IEC 61850-3 COMPLIANT – KEMA CERTIIFIED Layer-2

Zamperio industrial hardened fully managed 28 port switching platform is designed to meet the needs of demanding environments, offering both functionality and durability in a compact form. With the Condo Series, you get an easy-to-use solution that brings essential networking features to industrial applications.

Mountable on 1U Rack, IGMP snooping, VLAN’s, GARP Protocols, LACP via web browser, Telnet, SNMP, RMON, TFTP and RS-232 console interface. The condo series allows GOOSE messages to be passed without modifying the frame contents.

IEC 61850-3 and IEEE 1613 certified for power substations

EN 50121-4 certified for railway applications

NEMA-TS2 certification for traffic applications, the Condo Series is capable of operating under high EMI environments at temperatures ranging from -40 to 75°C (-40 to 167°F), making it an ideal choice for harsh environment applications

Operating Temp. -40 to 70°C (-40 to 158°F)

Storage Temp. -40 to 85°C (-40 to 185°F)

Relative Humidity- 5% to 95% (non-condensing)
